Welcome architects and engineers!

You may download our specification sheets and product models for Sketchup (.skp) below.

We have a total of 68 acoustic panel 3D models and CAD drawings free to download for you to use in your projects. The collection is made of Polyx™ Polyester Board that is available in 2 different thickness: 9mm and 12mm.

All rights reserved to Polyx™.

Diagonal

Ljuds™ Diagonal panels are characterized by finely grooved diagonal lines that run across the surface, creating a subtle yet dynamic sense of movement. When arranged strategically, these panels form a continuous pattern that enhances the geometric design and introduces a sophisticated texture to any space.

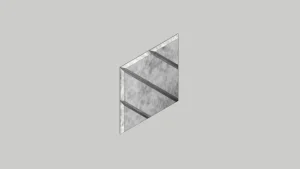

Diagonal 300, Carrara

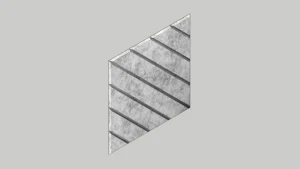

Diagonal 600, Carrara

Diagonal 1200, Carrara

Horizon

Polyx™ Horizon panels feature a series of horizontal grooves that run across the surface, creating a sleek and continuous linear effect. The horizontal orientation of the grooves emphasizes the width of the space, adding a sense of expansiveness and calm.

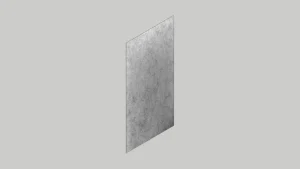

Horizon 20L, Carrara

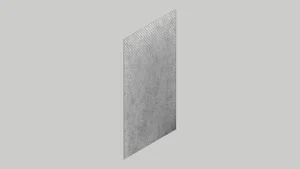

Horizon 30L, Carrara

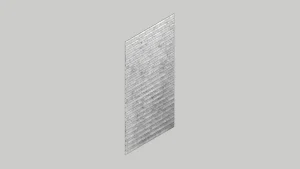

Horizon 50, Carrara

Horizon 75, Carrara

Horizon 75L, Carrara

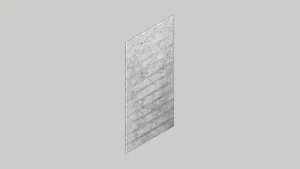

Horizon 100, Carrara

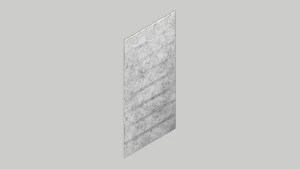

Horizon 150, Carrara

Horizon 150L, Carrara

Horizon Slim

Polyx™ Horizon Slim panels feature a series of thin horizontal grooves that run across the surface, creating a sleek and continuous linear effect. The horizontal orientation of the grooves emphasizes the width of the space, adding a sense of expansiveness and calm.

Horizon Slim 50L, Carrara

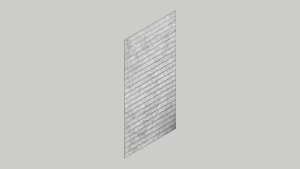

Horizon Slim 100L, Carrara

Horizon Slim 150L, Carrara

Vertical

Polyx™ Vertical panels are designed with vertically aligned grooves that create a striking sense of height and structure. The vertical orientation of the grooves naturally draws the eye upward, enhancing the perceived height of any space and adding a dynamic visual element.

Vertical 20L, Carrara

Vertical 30L, Carrara

Vertical 50, Carrara

Vertical 50L, Carrara

Vertical 75, Carrara

Vertical 75L, Carrara

Vertical 100, Carrara

Vertical 100L, Carrara

Vertical 150, Carrara

Vertical 150L, Carrara

Circuit

Polyx™ Circuit panels feature a unique design characterized by interconnected curved and linear grooves that evoke the intricate patterns of electronic circuits. The interplay of curved and linear grooves creates a complex, flowing pattern that adds a sense of movement to any space.

Circuit 1200, Carrara

Loop

Ljuds™ Loop panels feature circular grooves across the surface, adding depth and rhythm to their design. By arranging the panels in various orientations, you can create a repetitive pattern of intersecting circular and linear grooves, resulting in a richly textured, geometric aesthetic.

12mm

Polyx™ Polyester Board is made by a process of tumbling, needle-punching, and baking low and high melting-point polyester fibres. The high-density fibrous network absorbs sounds and reduces reverberation.

Polyx, Kandierte Äpfel

Polyx, Corn au Beurre

Polyx, Juniper Bonsai

Polyx, Irish Cream

Polyx, Piña Colada

Polyx, Orchid Mist

Polyx, Pain au Chocolat

Polyx, Cinnamon Sugar
