Polyx™

Specifications

  • Material: Polyester Wool, Polyester Board, Polyester Felt
  • Standard Dimension (Polyester Board) : 1220mm x 2440mm
  • Standard Dimension (Polyester Wool) : 600mm x 1200mm
  • Standard Dimension (3mm BWF Wool) : 1840mmW
  • Standard Dimension (5mm BWF Wool) : 1450mmW
  • Standard Thickness: 25mm, 50mm (Polyester Wool), 3mm,
    9mm, 12mm (Polyester Board), 3mm, 5mm (BWF Felt)
  • Eco-Friendly Test: Oeko-Tex® Standard 100
  • Fire-Rated Test: EN 13501-1 : Class B, s1 d0
  • Acoustics Test: ISO 354 : NRC = 0.3 – 0.75

Download Specification Sheets ZIP

Polyx™ Board

Acoustic polyester board in 4 different thickness

▼

Polyx™ Board is made by a process of tumbling, needle-punching, and baking low and high melting-point polyester fibres. The high-density fibrous network absorbs sounds and reduces reverberation. Polyx™ Board comes in 4 different thickness: 3mm, 9mm and 12mm.

Download Specification Sheet

  1. 3mm Polyx™ Board PDF
  2. 9mm Polyx™ Board PDF
  3. 12mm Polyx™ Board PDF
  4. 25mm Polyx™ Board PDF
Polyx™ 12mm Board
Urban Redevelopment Authority, Singapore
D'Perception Singapore
Learn More
Previous slide
Next slide

BWF Wool Felt

Acoustic polyester felt in 3mm and 5mm thickness

▼

Wool felt is the oldest textile material and at the same time a high-tech product. BWF Feltec offers a unique product diversity with traditional wool felts and a wide variety of natural as well as synthetic needle felts. BWF quality management system is certified to ISO 9001:2008 and is an integral component of our quality promise. BWF wool felts are ecologically safe and completely biodegradable.

Download Specification Sheet

  1. 3mm BWF Wool Felt PDF
  2. 5mm BWF Wool Felt PDF
Polyx™
Polyester Felt
Learn More
Previous slide
Next slide

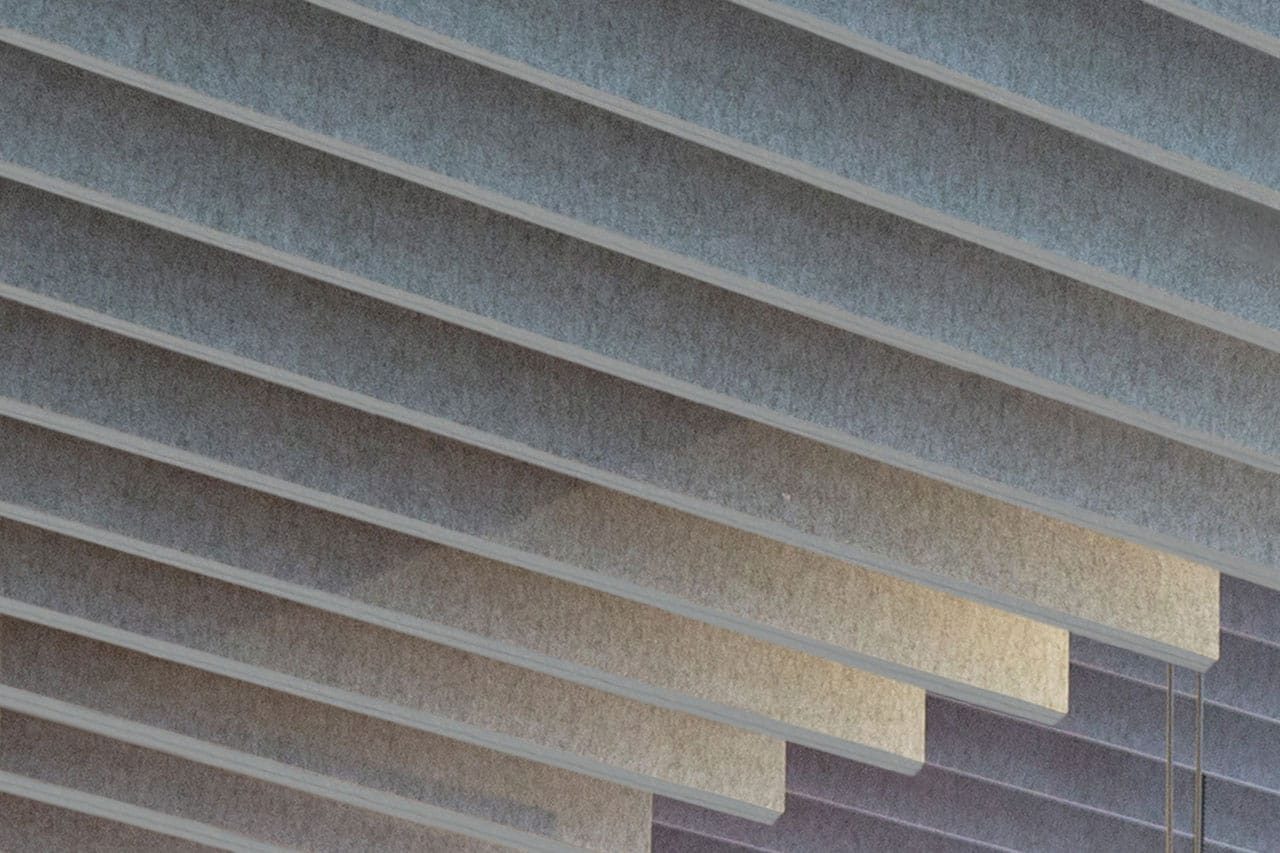

Polyx™ Baffle

Acoustic polyester baffle in 50mm thickness

▼

Polyx™ Baffles are acoustic panels hang vertically on the ceiling to absorb echoes. Our polyester baffles come in a basic black and white polyester wool finish, or a luxurious coloured felt finish. We recommend hanging each baffle approximately 300mm away from one another for good sound absorption.

Download Specification Sheet PDF

Polyx™ 50mm Baffle
Airbnb HQ, Singapore
Merx Construction Project Management
Learn More
Previous slide
Next slide

Polyx™ Perforate

12mm Polyester Panels, Cable Gripper & Wire Rope

▼

Polyx™ Perforate is created with a network of high-density perforations simulating a binary amplitude diffuser. The panel edges are half-perforated to allow a borderless joinery to the adjacent panel.

Download Specification Sheet PDF

Polyx™
Perforate
Learn More
Previous slide
Next slide

Polyx™ Tessellate

12mm Polyester Panels, Cable Gripper & Wire Rope

▼

Polyx™ Tessellate consists of three pyramidal faceted geometries – Kite, Tri, and Hex. By omitting faces and blending panels of different colours, they can be modularly tiled in various ways to form aesthetically intricate designs. Procedural generation is used to tessellate these across the surface creating organic pseudo-random designs, and can also be used to produce complex fractal patterns.

Download Specification Sheet PDF

Polyx™
Tessellate
Learn More
Previous slide
Next slide

Polyx™ Tri-Hex

12mm Polyester Panels, Hexagon Connectors



▼

Polyx™ Tri-Hex is designed to be modular in nature. The panels consists of three-dimensional triangular panels held together by connectors to create hexagonal units. Each of the connectors can be installed via wire ropes to the ceiling.

Download Specification Sheet PDF

Polyx™
Tri-Hex
Learn More
Previous slide
Next slide

Polyx™ Waffle Baffle

9mm Polyester Panels, Unistrut



▼

Polyx™ Waffle Baffle is a series of meandering baffles connected together via the waffling method. These baffles are slotted into Unistrut channels, for ease of installation.

Download Specification Sheet PDF

Polyx™
Waffle Baffle
Learn More
Previous slide
Next slide

Polyx™ Wave Baffle

12mm Polyester Panels, Unistrut



▼

Polyx™ Wave Baffle is a series of undulating baffles inspired by ocean waves. These baffles are slotted into Unistrut channels, for ease of installation.

Download Specification Sheet PDF

Polyx™
Wave Baffle
Learn More
Previous slide
Next slide
